Wired M-Bus metering modules for smart water and gas meters, combining non-magnetic inductive sensing with an M-Bus interface. Three PCB formats — V23050, V11201 and V20525 — share one metering platform, with the sensor powered by an internal DC 3.6 V supply.
The M-Bus metering module series combines PCB-coil non-magnetic sensing with a wired M-Bus converter compliant with EN 13757. CJ/T 188 is the default protocol, with Modbus available. Inductive sensing detects a metal target without reed switches or Hall elements, so metering is unaffected by strong external magnets.

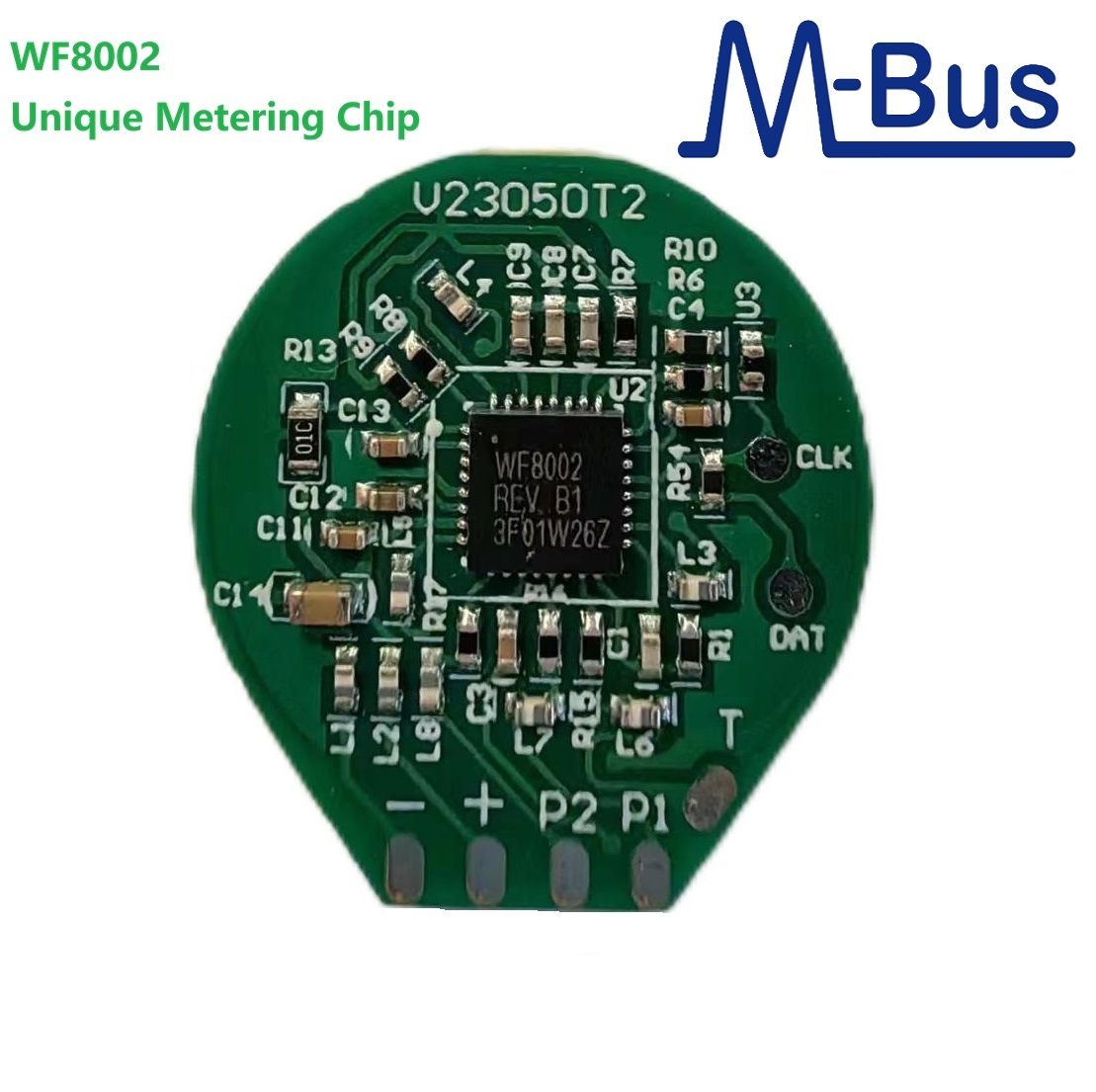

V23050-MBUS (teardrop PCB), V11201-MBUS (narrow PCB) and V20525-MBUS (round PCB) share the same electrical and bus specifications; the outline, connector and cable are customized to the meter mechanism.
Bus parameters, protocol mapping, addressing and telegram structure are configured per project. Contact us with your master equipment, bus length and meter count requirements.
