V23050-RS485 is the teardrop-format board in the wired series, pairing PCB-coil non-magnetic sensing with an RS485 transceiver. Modbus RTU is the default protocol, with CJ/T 188 available; power can be supplied externally at 5–12 V or internally at DC 3.6 V.

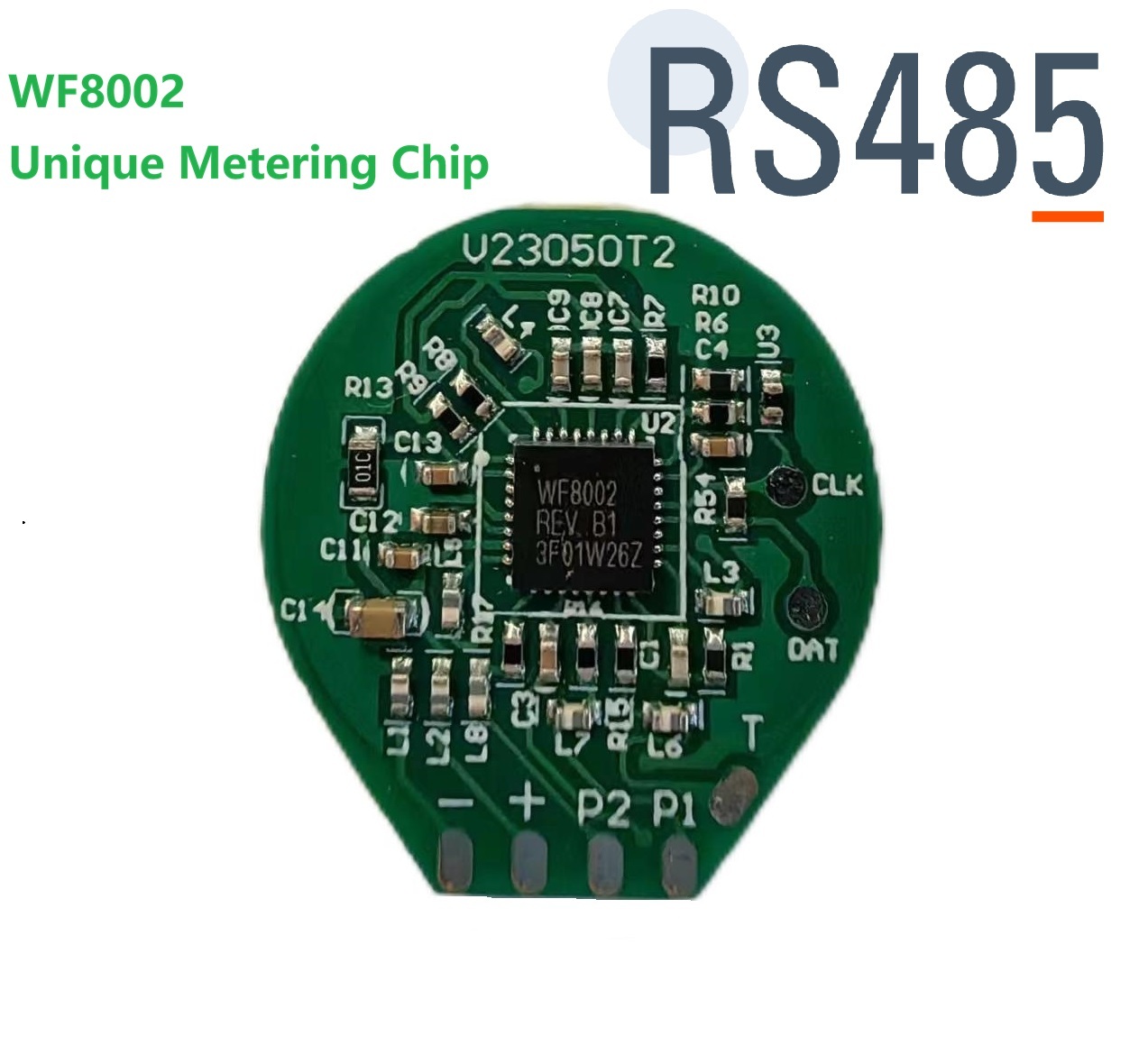

V23050-RS485 uses the V23050 teardrop PCB with an RS485 differential transceiver. Modbus RTU is the default protocol and CJ/T 188 is available as an option. The board supports an external 5–12 V supply or an internal DC 3.6 V battery, and senses a metal target without reed switches or Hall elements.
The teardrop outline suits meters with a central pointer and limited radial space. PCB dimensions, connector and cable can be customized to the meter mechanism.
See the M-Bus / RS485 Metering Module Series for protocol details, the other PCB formats and customization options.
