Description

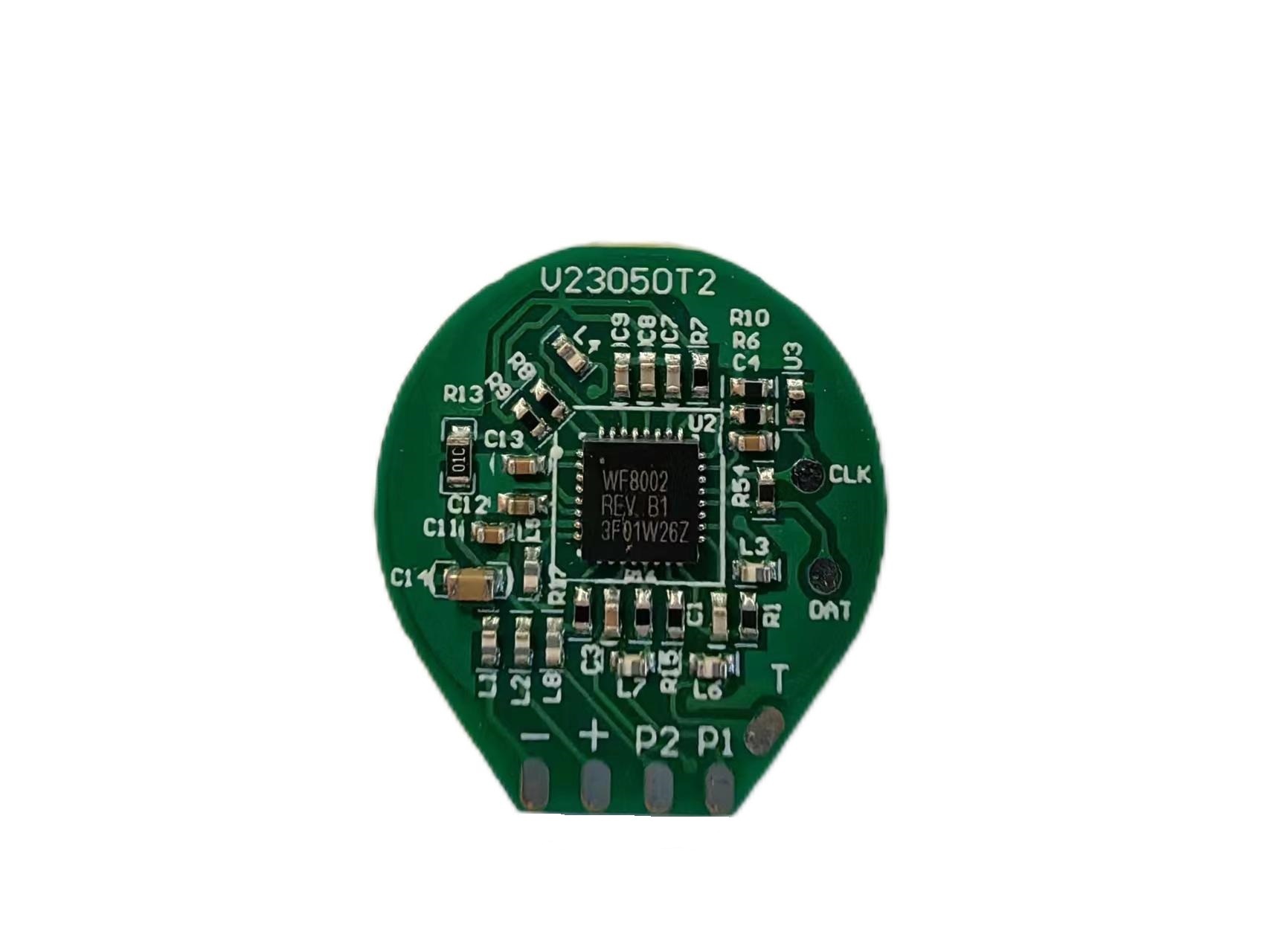

V23050T2 Inductive Pulse Output Sensor

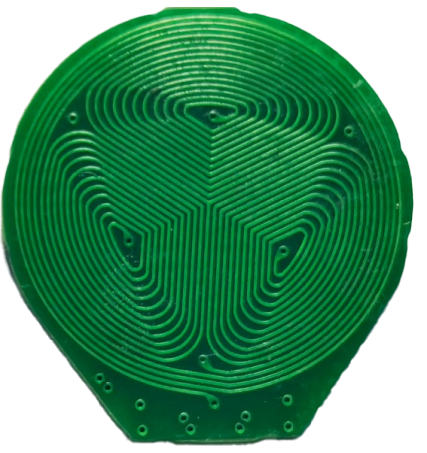

The V23050T2 is a compact, non-contact inductive pulse output sensor developed for smart water meters, gas meters and other rotating metering equipment. It detects the movement of a metal disc and converts mechanical rotation into stable electrical pulse signals.
Key Features
• Non-magnetic inductive sensing technology
• Forward and reverse metering support
• OC or TTL signal output
• Standard 64 ms pulse width
• Operating voltage from 3.0 to 3.6 V DC
• Multiple speed configurations available
• Strong resistance to external magnetic interference
• No mechanical contact or switch bounce
• CE and RoHS compliant
• Customizable PCB shape and dimensions
Multiple Configuration Options
The V23050T2 can be configured for different metering requirements. Standard residential configurations support rotation speeds up to 2.2 revolutions per second, commercial configurations support up to 10 revolutions per second, and high-speed configurations support up to 64 revolutions per second.
Power consumption varies according to the selected speed and signal-output configuration. Please contact us with your operating speed, output mode and meter structure for configuration confirmation.
Applications
• Residential smart water meters
• Commercial water meters
• Smart gas meters
• High-speed impeller meters
• Mechanical-to-electronic meter conversion
• Forward and reverse rotation detection
• Battery-powered metering equipment
Customization
Output mode, operating speed, PCB shape, dimensions, connector type, cable length and installation structure can be customized. Customers may provide meter drawings or samples for compatibility evaluation.
