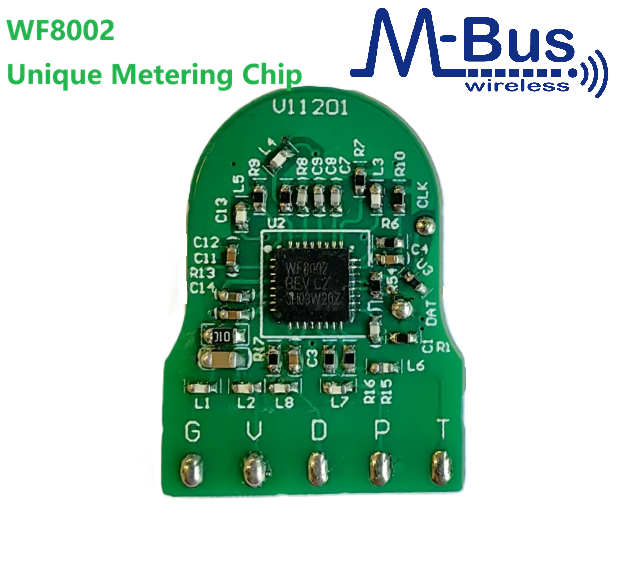

V11201-WMBUS uses the narrow rounded PCB format with an integrated 868 MHz Wireless M-Bus radio. It meets EN 13757 / OMS, supports configurable T1 / C1 modes and runs from 2.9–3.6 V with a total standby current below 5 µA at a 30-second send interval.
V11201-WMBUS combines the V11201 narrow PCB with a Wireless M-Bus radio compliant with EN 13757 / OMS. The board transmits at 868 MHz in configurable T1 / C1 mode and provides signal-strength output and forward / reverse pulse data.
The narrow, rounded outline suits meter housings with limited width. PCB dimensions, connector and cable can be customized to the meter mechanism.
See the WMBus Metering Module Series for protocol details, the other PCB formats and customization options.
